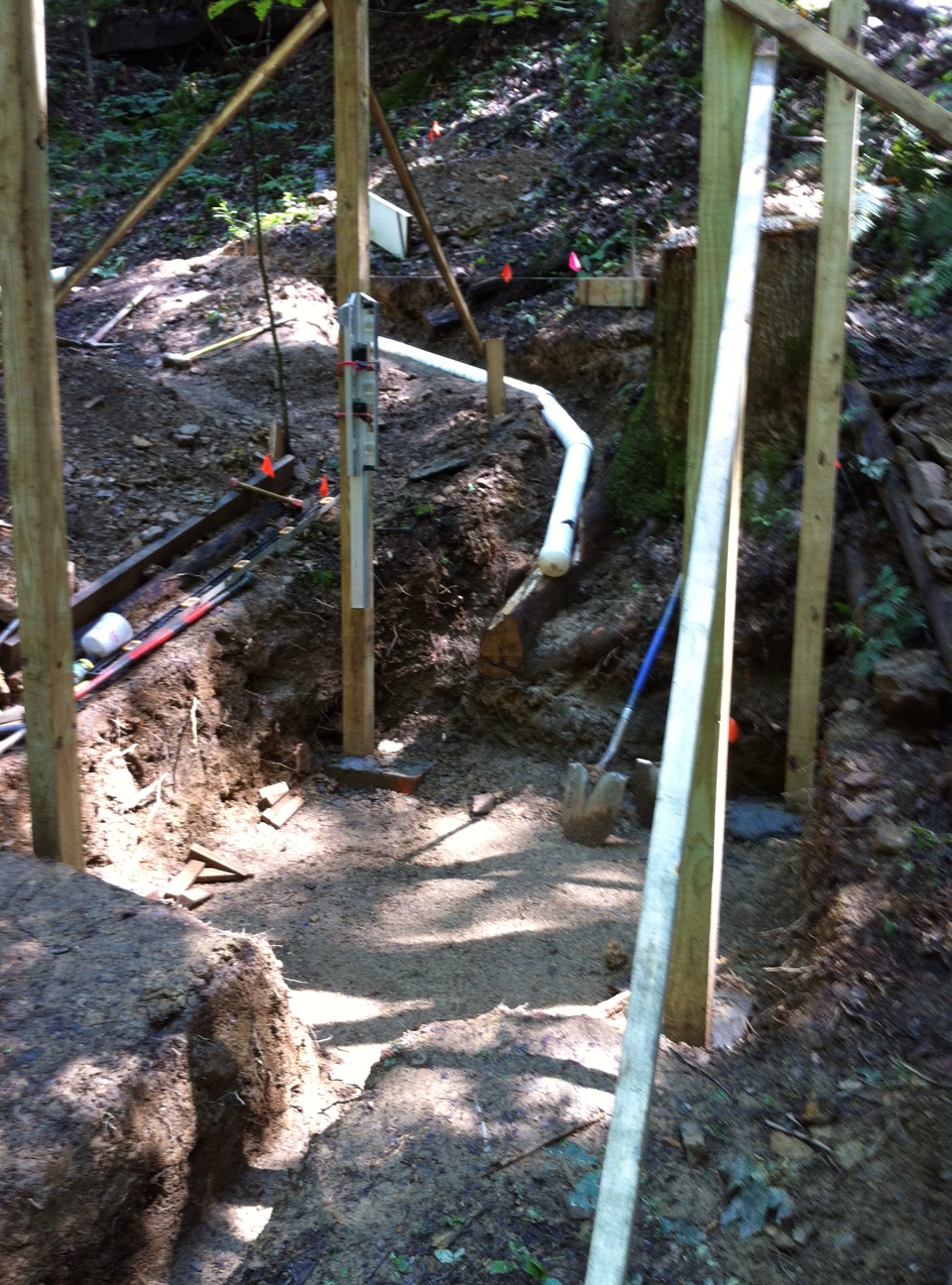

Penstock coming into powerhouse hole. 6′ x 6′ footprint
P/H posts
Month: July 2015
P/H almost done
Penstock & 1/2″ elec. conduit enter powerhouse, 6′ x 6′ footprint
Powerhouse from above
Powerhouse from above looking down stream in fall
Powerhouse from up hill during high water in summer
Powerhouse from uphill during high water in summer
P/H path steps
Powerhouse path stairs. 8″ locust logs w/ treated plywood sides.
Discharge box cutouts
Discharge box w/ two 4″ cutouts for return to creek.
Discharge box with pipes
Discharge box w/ two 4″ pipes to creek
Manifold before bypass
4″ sch 40 w/ 2″ valves and braided hoses, before bypass between wyes.
Manifold before bypass, front
Early manifold before bypass
Early manifold, before bypass between wyes.
Bypass elbow
Cutaway of discharge box. Two 4″ pipes back into creek.
Hydroelectric in WV
